Overband Electro Magnet Separator
Self-cleaning cross-belt separation for large tramp metal

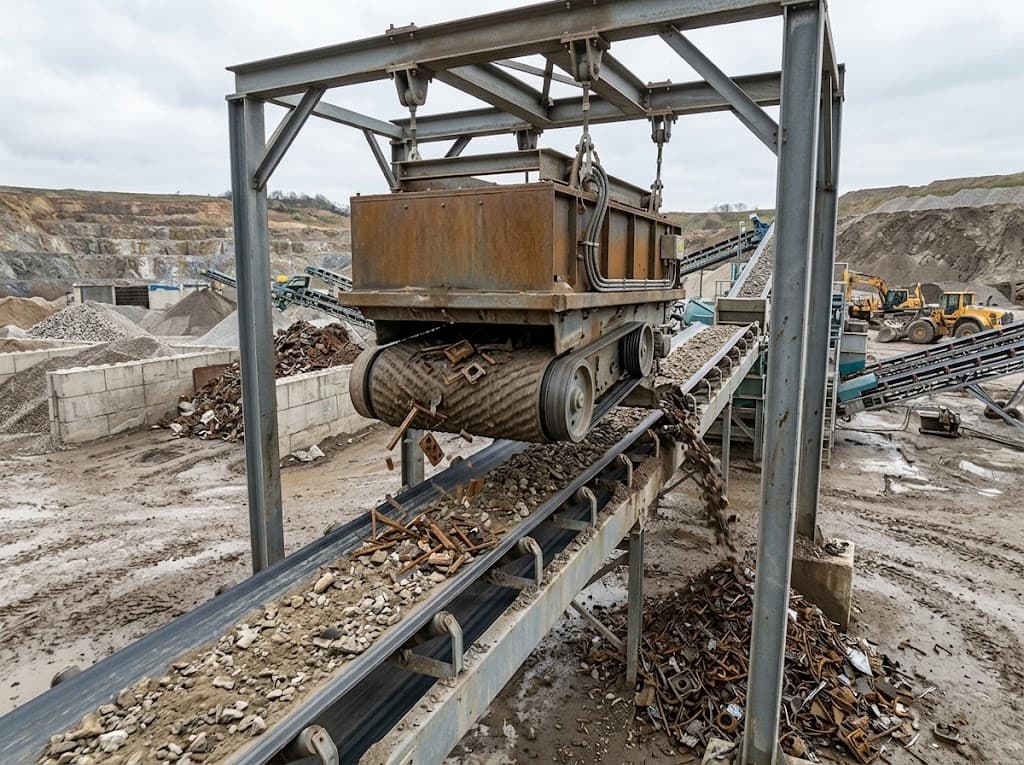

The Overband Electro Magnet Separator is suspended above a conveyor belt to intercept ferrous tramp metal too large or embedded for a drum separator to reliably catch. An electromagnetic coil generates a powerful field that reaches down through the material bed, lifting nails, bolts, rebar off-cuts, and other tramp metal clear of the product. Most units are self-cleaning: an internal cross-belt continuously carries captured metal to the side of the conveyor and drops it outside the product path, so the line never has to stop for manual clean-out. Suspension height and field strength are matched to burden depth and belt speed at the design stage. This is the standard choice for protecting crushers, shredders, and mills on cement, recycling, and quarry lines where large tramp metal is a real risk to equipment.
- Self-cleaning cross-belt or in-line discharge
- Powered coil for strong, adjustable field depth
- Suspension height engineered to burden depth
- Continuous operation, no line stoppage for clean-out
- Suitable for large tramp metal, not just fines
- Weatherproof housing for outdoor installation
- Custom belt length and width per conveyor
- Protects crushers, shredders, and hammer mills
How it works
Specifications
| Conveyor Belt Width Covered | 650–2000 mm(In-line or cross-belt) |
|---|---|
| Suspension Height | 150–600 mm above burden(Site-calculated) |
| Magnetic Field Intensity | Up to 9000 Gauss(Adjustable via DC supply) |
| Cleaning Type | Self-cleaning, continuous belt(Standard configuration) |
| Power Supply | 3-phase, custom coil rating(Site voltage confirmed at order) |
Final datasheet issued per confirmed application.
Applications
Warranty & policies
- Terms & ConditionsThe terms that apply when you use latifengineering.com, request a quotation or place an order with Latif Engineering.Read the policy
- Privacy PolicyWhat information latifengineering.com collects when you send an enquiry or visit the website, why we collect it and how we look after it.Read the policy
Frequently asked questions
In-line or cross-belt — which do I need?
Cross-belt suits narrow conveyors with side discharge space; in-line suits wider belts where metal is dropped ahead of the burden.
How is suspension height decided
It is calculated from burden depth, belt speed, and expected tramp metal size during the design stage.
Does the unit stop the conveyor to discharge metal?
No, the self-cleaning belt discharges continuously without stopping the main line.
Can this catch metal buried inside the material bed?
Yes, the electromagnet's field is sized to penetrate the full expected burden depth.
